150-year-old Cathedral of the Holy Cross receives first-ever renovation

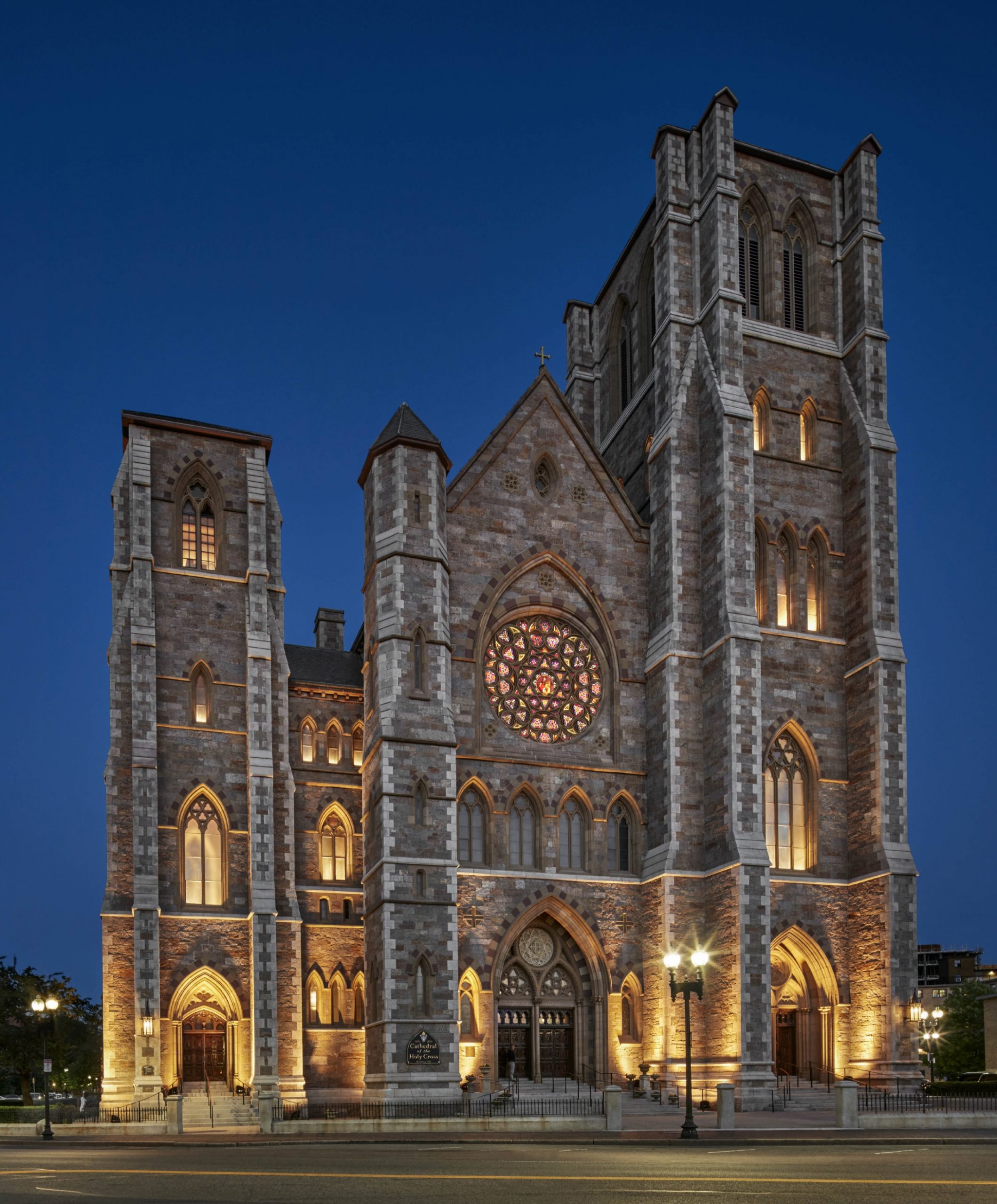

The Cathedral of the Holy Cross is the largest Roman Catholic church in New England and seats nearly 2,000 people. Its Gothic Revival style incorporates local Roxbury puddingstone and gray limestone. © Robert Benson Photography

For nearly 150 years, the Cathedral of the Holy Cross has been a staple in Boston’s Catholic community and has played host to many significant events in U.S. history, including 1964’s requiem mass to mourn the assassination of President John F. Kennedy, Pope John Paul II’s first trip to the United States as leader of the Catholic Church in 1979 and an interfaith service where President Barack Obama addressed the nation after the 2013 Boston Marathon bombing.

Generations of use had taken a toll on the cathedral, which is the largest Catholic church in New England and is the mother church of the Boston archdiocese. Tasked with bringing the cathedral into the 21st century while maintaining its old-world charm, Suffolk Construction was chosen along with Elkus Manfredi Architects to lead one of its largest renovations to date at the request of Cardinal Seán. Local contractor New Boston Interiors was hired to use specified LATICRETE® products to install new stone floor finishes to replace the carpeting and vinyl composition tile covering the wooden floors throughout the entire building.

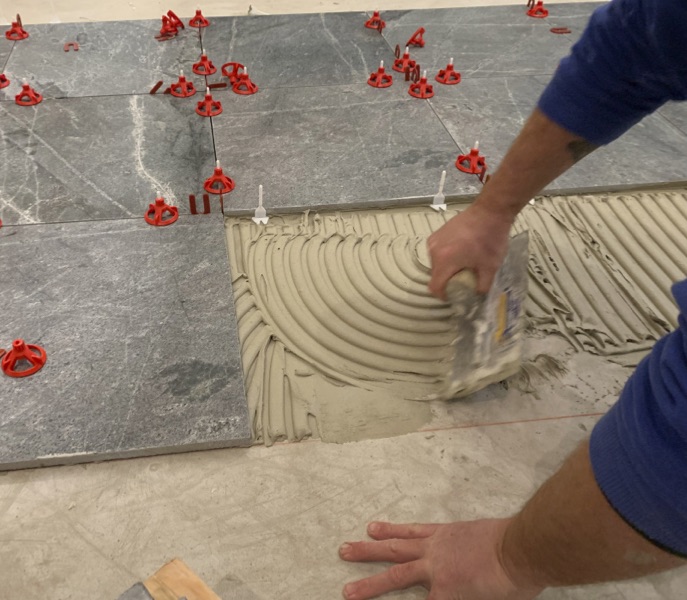

Local contractor New Boston Interiors used specified LATICRETE® products to install new stone floor finishes to replace the carpeting and VCT covering the wooden floors throughout the entire building.

“What matters most to Elkus Manfredi Architects is to specify products that will endure the test of time; so in this case, the LATICRETE reputation for high-quality sub-flooring systems and the 25-year warranty were critical to our product specification,” said Cathy Naughton, AIA, LEED AP, Senior Associate at Elkus Manfredi Architects. “Our firm is also committed to specifying products that contribute to LEED points with high regard for sustainable building, and knew we could rely on LATICRETE and their product portfolio to meet our standards.”

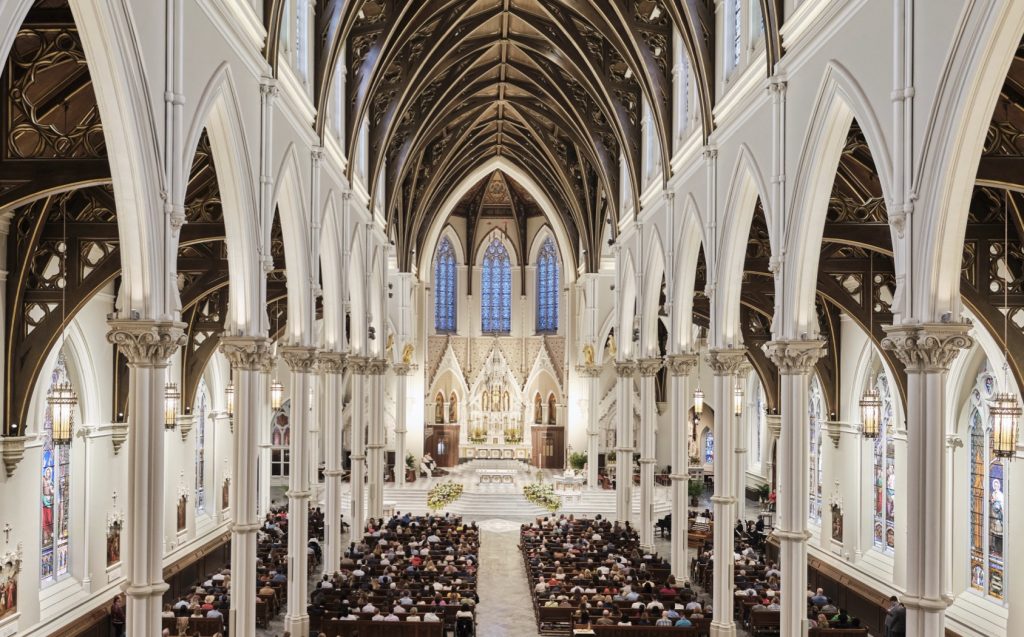

After nearly two years of renovations, in 2019 the main sanctuary at the Cathedral of the Holy Cross opened just in time for Holy Week. Parishioners gathered in the newly-renovated space for Easter Sunday. © George Martell

Historic structure, city prominence create challenges

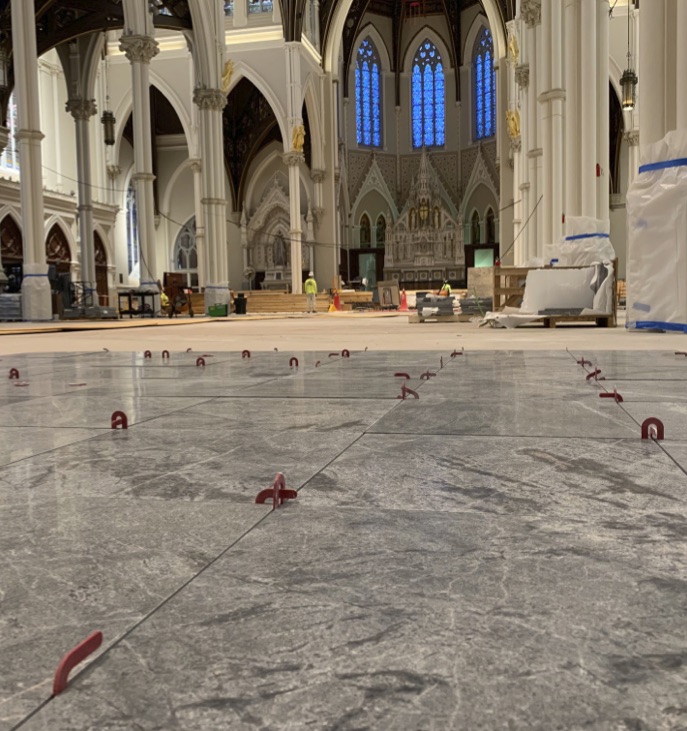

STRATA_MAT™, a high-performance uncoupling membrane that offers an enhanced mechanical bond of the adhesive mortar for faster drying and a shorter time to grout, as well as NXT® Level, a cement-based, self-leveling underlayment, were used to flatten the floors.

Historic Structure: With any historic structure, the renovation process can be full of surprises. All of the teams working on the cathedral needed to be mindful of the structure’s past and capable of creatively finding solutions that could repair any bumps that came up along the way with ease and respect to the original building.

City Prominence: The Cathedral of the Holy Cross is a mainstay and one of the most exciting renovation projects that has taken place in Boston. All of the teams involved knew that they were being asked to complete a difficult task with the whole community’s eyes on them.

LATICRETE solutions address extreme variances in floor heights

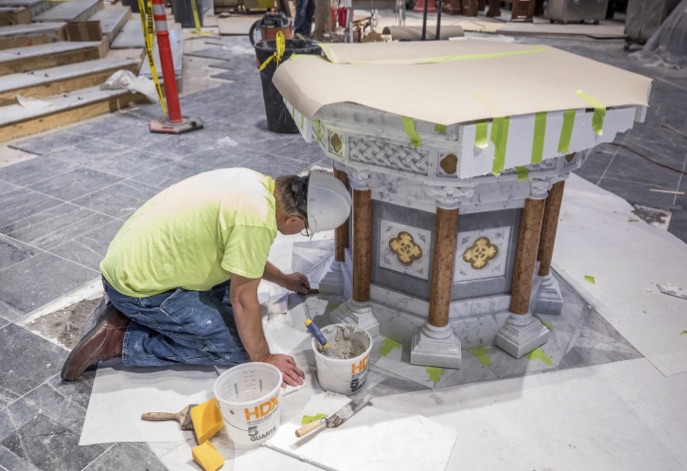

Special care is taken to install custom-sized tile around the baptismal fountain.

“When we made our first site visit, we knew that we would have our work cut out for us immediately,” said New Boston Interiors Project Manager Brendan Howard. “The plan was to install 20,000 square feet of 18” x 18” tile throughout the entire nave, and it needed to be perfectly flat throughout as directed by the archdiocese. We were handed a topographic map of the nave area that showed an 8” variance from the floor’s highest and lowest points.”

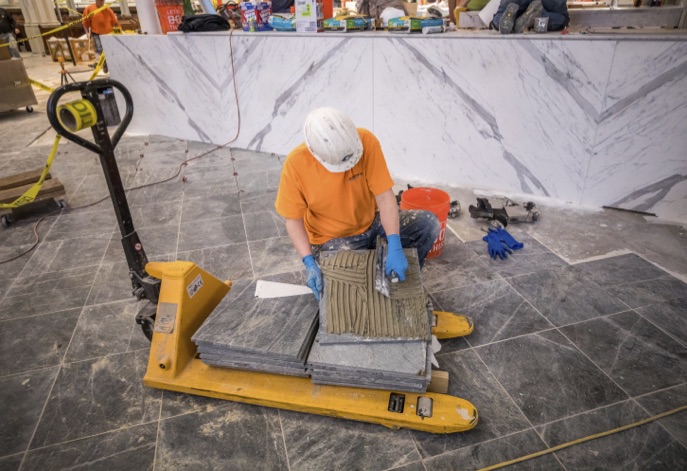

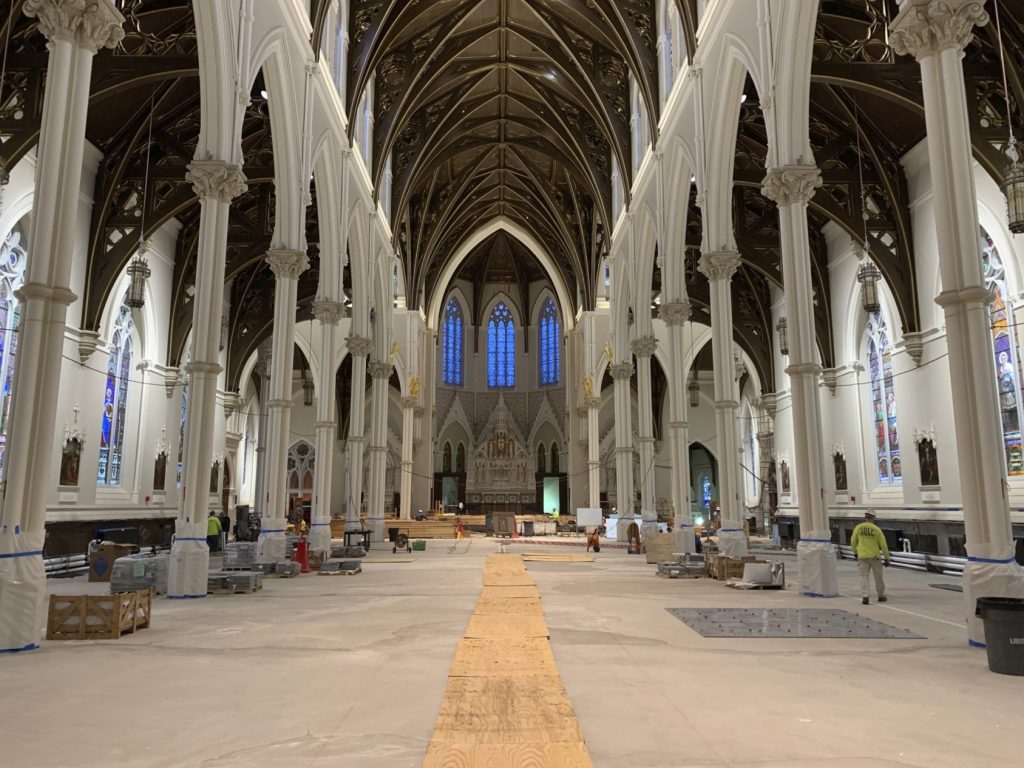

New Boston Interiors used NXT® Level, a cement-based, self-leveling underlayment, to flatten the floors as much as possible. The topographic map of the nave area showed an 8” variance from the floor’s highest and lowest points

LATICRETE representative Peter McKeon joined New Boston Interiors onsite to inspect the floor variance and help identify a solution to the very difficult task at hand. McKeon advised the installer to use STRATA_MAT, a high-performance uncoupling membrane that offers an enhanced mechanical bond of the adhesive mortar for faster drying and a shorter time to grout, as well as NXT® Level, a cement-based, self-leveling underlayment, to flatten the floors as much as possible.

Once the floors were leveled, the team installed the subfloor. Unfortunately, because of where the pews had been placed throughout the years, the aisle was 1/4” higher than the rest of the floor after the subfloor was installed. HYDRO BAN® Board was the solution.

“CDX plywood is not stocked at 1/4” thickness, so we were extremely grateful that HYDRO BAN Board, a lightweight, easy-to-install, ready-to-tile backer board, could be subbed in and performed wonderfully. Without HYDRO BAN Board, we would have had to put the project on hold and remove all of the 3/4” thick plywood that had been installed,” explained Howard.

After completing the HYDRO BAN Board installation, Howard and his team were able to install the 20,000 square feet of tile with ease thanks to MULTIMAX Lite. This product is the ultimate one-step, non-sag mortar for interior and exterior installations of ceramic tile, porcelain tile, glass tile and stone.

All of the teams working on the project needed to be mindful of the cathedral’s history and find creative solutions that would preserve the building’s character. © Nate Fontes-Fried

SPECTRALOCK® PRO Premium Grout, the most color-accurate and uniform, stain-resistant grout available today, and PERMACOLOR® Select, an advanced high-performance cement grout that offers the industry’s first dispersible dry pigment solution, were used to grout throughout the cathedral.

All of the products selected for use, aside from HYDRO BAN Board, have received multiple certifications and declarations for sustainable living, including Health Product Declarations (HPD), Environmental Product Declarations (EPD) and UL GREENGUARD Certifications for low chemical emissions.

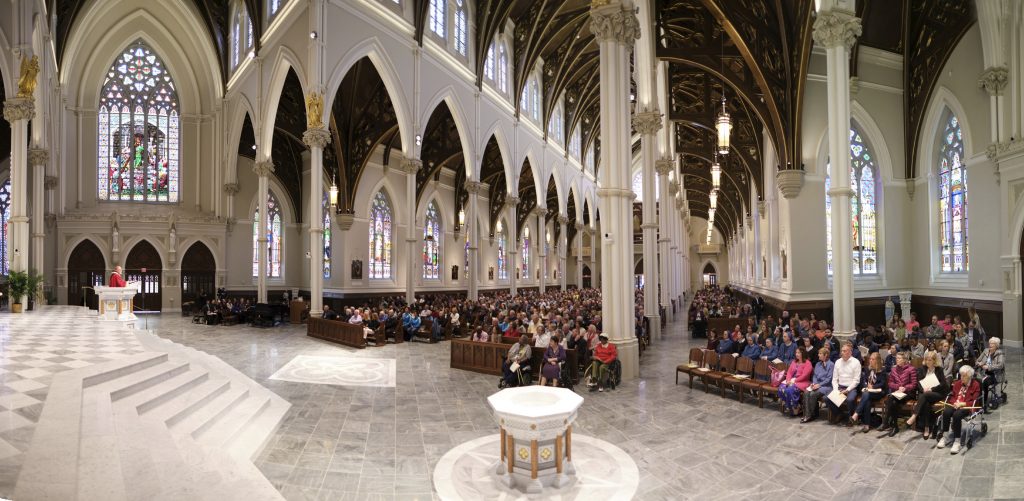

The Cathedral of the Holy Cross is a mainstay of the city of Boston, and is one of its most exciting renovation projects to date. Here, parishioners celebrate Palm Sunday preceding Holy Week.  © George Martell

Multiple product solutions led to successful installation

“LATICRETE has a product for every situation, and Peter was always ready to offer as many options as possible,” Howard added. “The project at the Cathedral of the Holy Cross presented us with formidable problems, but the teamwork led by Peter and our foreman Andrew Jamieson, who has more than 40 years of experience as a tile mechanic, was the only way this project could have been as successful as it was.”

After nearly two years of renovations, the main sanctuary at the Cathedral of the Holy Cross in the South End opened just in time for 2019 Holy Week. Since reopening, the ordination of the largest group of priests in a single ceremony for the archdiocese in nearly two decades has taken place, adding more tallies to the cathedral’s list of significant historical happenings.

For nearly 150 years, the Cathedral of the Holy Cross has been a staple in Boston’s Catholic community, and has played host to many significant events in U.S. history.
Since reopening, the ordination of the largest group of priests in a single ceremony for the archdiocese in nearly two decades has taken place, adding more tallies to the cathedral’s list of significant historical happenings.
