IAPMO – Uniform Codes Spotlight

From the 2021 UPC Illustrated Training Manual, Chapter 4, PLUMBING FIXTURES AND FIXTURE FITTINGS


408.5 Finished Curb or Threshold. Where a shower receptor has a finished dam, curb, or threshold, it shall be not less than 1 inch (25.4 mm) lower than the sides and back of such receptor. In no case, shall a dam or threshold be less than 2 inches (51 mm) or exceeding 9 inches (229 mm) in depth where measured from the top of the dam or threshold to the top of the drain. Each such receptor shall be provided with an integral nailing flange to be located where the receptor meets the vertical surface of the finished interior of the shower compartment. The flange shall be watertight and extend vertically not less than 1 inch (25.4 mm) above the top of the sides of the receptor. The finished floor of the receptor shall slope uniformly from the sides towards the drain not less than 1/8 inch per foot (10.4 mm/m), nor more than 1/2 inch per foot (41.6 mm/m).

Thresholds shall be of sufficient width to accommodate a minimum 22 inch (559 mm) door. Shower doors shall open so as to maintain not less than a 22 inch (559 mm) unobstructedopening for egress. Where there is a shower without a threshold, the floor space within the same room shall be considered a wet location and shall comply with the requirements of the building, residential, and electrical codes.

Exceptions:(1) Showers in accordance with Section 403.2.(2) A cast-iron shower receptor flange shall be not less than 0.3 of an inch (7.62 mm) in height.(3) For flanges not used as a means of securing, the sealing flange shall be not less than 0.3 of an inch (7.62 mm) in height.

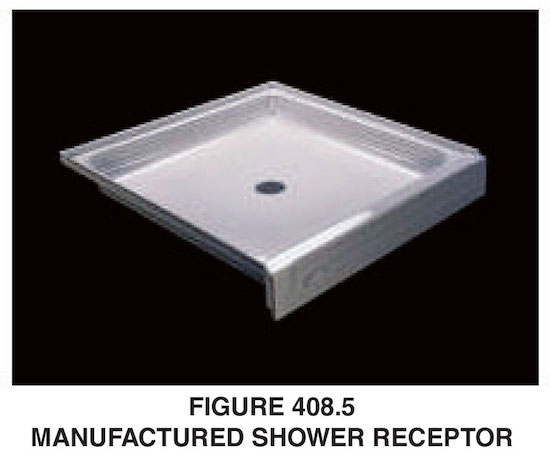

The shower receptor is the floor or bottom of the shower. This section refers mainly to manufactured receptors (see Figure 408.5). The requirements of the receptor provide protection from leakage. If installed correctly, it will provide a solid ground for the shower and protect the floor below from leakage. As cited in this code section, exception (1) is for accessibility standards in regards to shower receptors only, which allows a shower with no threshold so a wheelchair can roll into the shower.

By categorizing the entire bathroom as a “wet location,” a number of regulations from the building, residential and electrical codes come into play. This section refers to the building and residential codes. Minimum requirements concerning this type of installation are found in those documents. Ultimately, the local Authority Having Jurisdiction will have the final determination as to how much of the bathroom would be considered a wet location.
