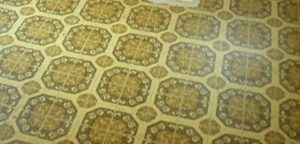

Can you please tell me where to locate in the 2019 TCNA Handbook information to determine if installing tile over sheet vinyl goods is still a “questionable substrate”? I do not see any ANSI specs that reference installing tile over glue-down sheet vinyl as an option. Is there a spec for this?
There is not an ANSI specification or a TCNA Handbook method or detail for installing tile over sheet vinyl goods. The NTCA Reference Manual lists sheet vinyl as a questionable substrate.
However, many manufacturers produce mortars that may be used to install tile over sheet vinyl provided it is fully adhered (not simply edge glued) and non-cushioned. Should you choose to do this, it is critical to follow the mortar manufacturer’s instructions.
It is vital that that you use an appropriate cleaner to remove all wax and surface contaminants from the vinyl. I recommend you do not sand or abrade the surface of the vinyl as some products may contain asbestos.
– Mark Heinlein, NTCA Training Director

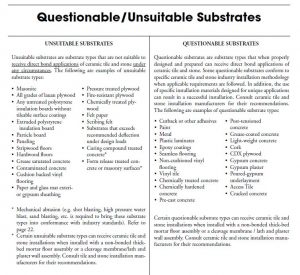

The list of questionable substrates is found in the 2019-2020 NTCA Reference Manual on page 31. They are not listed in the TCNA Handbook. There is, however, a method for renovations in the Handbook on page 288, Method TR711. It states “Ideally, existing finishes should be completely removed so the tile work can be placed on the substructure. This isn’t always practical, and as previously stated, some mortar manufacturers will warranty installations over vinyl flooring, provided they meet certain criteria.” TR711 goes on to give general guidelines for renovations.
– Rodd Roderick, NTCA Technical Trainer
Mark Heinlein is Training Director for the National Tile Contractors Association. He is Certified Tile Installer #1112 and currently a Ceramic Tile Education Foundation evaluator for the Certified Tile Installer program. Heinlein was the owner of Mark Heinlein Surfaces of Negaunee, Michigan.
